Collapsible round bale hay feeders

Northeast Gate Company brand Hay Racks

 Both side panels can be moved in by the animals as they eat the hay. The side panels have a roller system for easy movement of the panel by animals as they eat. Watch the video below to see this Big Round Bale hay feeder in action. Available with a 4″x 4″ mesh hay area or vertical bar hay area. Inside hay area is 6ft x 6ft wide and 4ft tall. All 16 gauge materials –  1-5/8” round outer frame – 1-1/2” square top where roller tracks are – 1” round vertical bars – The vertical hay bars are on 4″ spacing (3″ opening between bars) – On sliding panels, the flat bar on the bottom is 2″ wide and 1/4″ thick.

#BB2500W- Collapsible Round Bale Hay Feeder with 4″x 4″ WIRE MESH hay area = $ 685.00

#BB2500B- Collapsible Round Bale Hay Feeder with VERTICAL BAR hay area = $ 795.00

Northeast Gate Company brand Hay Racks

BIG Round Bale Hay Feeder

#BB1000
#BB1000R and #BB1000
spring loaded door latch

This Round Bale Hay feeder is 4′ tall by 6′ x 6′ wide. Height from the ground to the roof top is 7′ 8″ tall. The #BB1000 weighs @ 200lbs, and   the roof frame @ 120 lbs.  Built with galvanized steel, 16 gauge- 1 5/8″ round tube on the outer frame. 1 3/8″ round tube curved bars. And 1″ round tube vertical bar ends. All Big Bale Feeders are now Powder Coated  for durable use, Choose any color from our color chart. The spacing between the feeder bars is 6 7/8″. Feeder Bars are set on 8 1/4″ centers. 15″ from the ground to the bottom of the hay section. Customer supplies roofing material for roof frame. Wood, Metal, or a tarp can be used. Door has a spring loaded latch to prevent livestock from opening. Bale weight limit 2500lbs.

#BB1000R and #BB1000
#BB1000W- #BB1000R - #BBCAN
Item numberProductPrice
 #BB1000  Big Bale Round Bale HAY FEEDER-BARS  $   625.00
 #BB1000R  Big Bale ROOF FRAME $   352.00
 #BBCANCanopy COVER (WHITE- other colors available) $   208.00

(customer can supplies roofing material for roof frame. Wood or metal, )

The BIG ROUND BALE HAY FEEDER can be used for all sizes of livestock or exotic animals.

Reduced size BIG ROUND BALE FEEDER

NEW CUSTOM SIZE AVAILABLE – 5ft X 5ft size – 4ft tall

Pictured in front of our standard 6ft x  6ft Big Round Bale Hay Feeder to show size difference.

#BB1500 – 5’x5′  Big Round Bale Hay Feeder = $ 625.00 each

Custom sized roof frame for the #BB1500 (not pictured)

#BB1500R- Roof frame for the #BB1500 Big Round Bale Hay Feeder = $ 352.00

BIG Round Bale Hay Feeder with Trough

#BB1000T

Item # BB1000T = Big Round Bale
Hay Feeder
WITH TROUGH  = $ 891.00

Item numberProductPrice
 #BB1000T  Big Bale Round Bale Hay Feeder WITH TROUGH  $  891.00
 #BB1000R  Big Bale ROOF FRAME  $  352.00

(customer supplies roofing material for roof frame. Wood, metal, or tarp can be used.)

BIG BALE Round Bale Hay Feeder with 4X4 Wire Mesh

#BB1000W- #BB1000R - #BBCAN
#BBCANCANOPY COVER for the Big Bale Roof Frame$ 208.00
#BB1000WBig Bale Round Bale Hay Feeder with 4×4 wire mesh hay area (Pictured) $  625.00
 #BB1000WT  Big Bale Round Bale Hay Feeder with 4″x4″ wire mesh hay area and TROUGH (not pictured)  $  891.00
 #BB1000R  Big Bale Feeder ROOF FRAME  $  352.00

(customer supplies roofing material for roof frame. Wood, metal, or tarp can be used.)

6ft tall - BIG BALE Round Bale Hay Feeder

#BB6000W
#BB6000
#BB6000T

Ideal for large/tall sized livestock, available with or without trough, bar hay area.
40″ from the ground to bottom area of round bale.

BBCANCANOPY COVER for the Big Bale Roof Frame$ 208.00
BB60006ft Tall Big Bale Round Bale  Hay Feeder – bar hay area $  728.00
 BB6000T  6ft Tall Big Bale Round Bale Hay Feeder- bar hay area WITH TROUGH  $  994.00
 BB1000R  Add Item – Roof Frame (Add roof frame to any Hay Feeder)  $  352.00


(customer can supply roofing material for roof frame. Wood OR Metal can be used.)

Item numberProductPrice
BB6000W 6ft Tall Big Bale Round Bale  Hay Feeder – 4″x 4″ mesh hay area $ 728.00
BB6000WT6ft Tall Big Bale Round Bale Hay Feeder- 4″x 4″ mesh hay area with Trough $ 994.00
BB6000W big bale feeder and the BB1000W big bale feeder showing height difference.
#BB6000T
Left: #BB6000
Right: #BB1000
#BB6000T

CANOPY TARP COVER FOR YOUR BIG BALE ROOF FRAME

If you do not want to add wood or metal to your Big Bale Roof Frame we offer this Vinyl/Nylon HEAVY DUTY Canopy Tarp Cover. Size is 6′ wide x 9′.6″ long. Available in colors listed to the left.

Item numberProductPrice
BBCANCANOPY TARP COVER for the roof frame $208.00

how to attach your roof frame to the big round bale hay feeder

Please note that roof material must be added to the frame, or you can purchase the tarp above to attach to the frame, for hay protection from the elements.

Hay Riser Hay Rack

These racks are ideal for feeding large bales of hay. Keeps hay off of the ground. They will fold up flat when not in use for easy storage during the summer. Holds up to 1800 lb bales, round or square bales. Included safety roll bars on ends prevent hay from tipping or rack
folding shut when no hay is on rack. Made of 1 3/8 X 14 gauge tubing. Powder Coated “Wheel Grey” unless another color is requested.

Item numberProductPrice
HRISERHay Riser Hay Rack $  398.00
Big Square Bale feeder pictured in use as a deer feeder Customer added tarp to protect hay from rain.

BIG SQUARE BALE HAY RACK
Outside dimensions: 72″ wide, 100″ long, 48″ tall. Outside Pipe 1 5/8″ -16 gauge. Inside pipe 1 3/8″ -16gauge. Item weight-270lbs. Bottom point of hay is 8″ off the ground. Hay area bars set in 8 1/4″ centers. 6 7/8″ opening between bars. Made to fit 4′ x 8′ large square bales of hay.  Assembly Required upon arrival.  This hay rack is much cheaper to ship, if it is shipped disassembled

Item numberProductPrice
#SB2000.ABIG SQUARE BALE HAY RACK
-assembly required
 $887.00

Small Livestock Wall Mount Hay Racks

Wall Mount Hay Rack with 4″x4″ wire, ideal to use with goats, sheep, mini horses, alpacas, llamas, etc. Let us know your color choice from our color chart.

Item numberProductDimensionsPrice
WMHR44 ft. SL Wall Mount Hay Rack12″ wide at top, 18″ tall, 4′ long$ 131.00
WMHR66 ft. SLWall Mount Hay Rack(new design) 18″ wide at top, 24″ tall, 6′ long$ 190.00
WMHR88 ft. SLWall Mount Hay Rack(new design) 18″ wide at top, 24″ tall, 8′ long$ 217.00

Large Livestock Wall Mount Hay Racks

Hay racks made with galvanized steel and powder coated in your color choice

#LGWM8
#LGWM4

Wall Mount Hay Rack with bars pictured, ideal to use with larger sized livestock like horses, cattle, etc. Bars set on 5 inch centers, with a 4 inch opening between the bars. Brackets at each corner for mounting to wall. 30 inches tall, 5 inch wide at the bottom, 24 inches wide at the top. In 4ft and 8ft lengths.

Item numberProductDimensionsWeightPrice
LGWM4Large 4 ft. Wall Mount Hay Rack 24″ wide at top, 5″ wide at bottom, 30″ tall, 4′ long50lbs$ 201.00
LGWM6Large 6ft Wall Mount Hay Rack24″ wide at top, 5″ wide at bottom, 30″ tall, 6′ long65lbs$ 242.00
LGWM8Large 8 ft.Wall Mount Hay Rack24″ wide at top, 5″ wide at bottom, 30″ tall, 8′ long90lbs$ 304.00

LARGE LIVESTOCK FENCE MOUNT HAY RACK

Hay racks made with galvanized steel and powder coated in your color choice

LGWM4.HB
LGWM4.HB
LGWM4.HB

Fence Mount Hay Racks are available with hooks instead of wall mount brackets, to hang on a board or pipe fence (specify size of hooks needed) . Solid metal back added to the open back area and sides to prevent hay from falling out of the back and sides of the hay rack. Hooks can be removed and this hay rack can also be mounted on a wall.

Item numberProductDimensionsWeightPrice
LGWM4.HBLarge 4 ft. Fence Mount Hay Rack with mounting hooks and solid back and sides24″ wide at top, 5″ wide at bottom, 30″ tall, 4′ long $279.00
LGWM6.HBLarge 6 ft. Fence Mount Hay Rack with mounting hooks solid back and sides24″ wide at top, 5″ wide at bottom, 30″ tall, 6′ long95lbs$356.00
LGWM8.HBLarge 8 ft. Fence Mount Hay Rack with mounting hooks solid back and sides24″ wide at top, 5″ wide at bottom, 30″ tall, 8′ long $446.00

Hanging Stall or Kidding Pen Feeder

Customized feeder with hinged bar top. Add a hinged bar top lid to the 20" wide feeders for +$ 36.00 more.

Available in Bar or Mesh Hay Area

Measurements:
Width: 20 inches or 40 inches
Height: 21 inches
Front to back depth: 13 inches
Bottom tray depth: 2 inches
Hay area: 3 1/2 inches between bars
Mesh hay area is 4″ square opening

This feeder is ideal to use in stalls, kidding pens, or at shows. Hooks in back for easy attachment to fence or gate. Hooks can be removed and feeder mounted to the wall. Has section for hay and grain. Ideal for all smaller sized livestock such as alpacas, llamas, goats, sheep, etc. Feeders made with galvanized metal and POWDER COATED in your color choice.

Note: Feeder can be mounted on the wall, or attach included hooks for hanging on board, pipe, etc.

Bar Style Hay Area

Item numberProductDimensionsPrice
GFKP.BHanging Stall/Kidding Pen Feeder with bars20″ wide$ 129.00
GFKPL.BHanging Stall/Kidding Pen Feeder with bars40″ wide$ 268.00

Wire Mesh Style Hay Area

Item numberProductDimensionsPrice
GFKP.WHanging Stall/Kidding Pen Feeder with 4″x4″ wire mesh20″ wide$ 129.00
GFKPL.WHanging Stall/Kidding Pen Feeder with 4″x4″ wire mesh40″ wide$ 268.00
*Customized* #GFKPL- 40" Wide feeder with bar sides and wire mesh front hay area.

Mini Feeder (For miniature/small sized animals)

Feeders come with
hooks to hang on a
board of fence. If
hooks are unbolted
the feeder can be
placed on a wall.

Measurements:
Overall Height: 20″
Hay Manger: 12″
Width: 12 1/2″
Deep: 14″

This is the new mini hay and grain feeder.  It is half the width of our current Hanging Stall Feeder pictured above and works much better for miniature horses and donkeys.  There is more distance between the hay and the pan so livestock with heads larger than sheep or goats can get their head in and out better to eat grain.

Item numberProductPrice
GFMINIMini hay and grain feeder $  101.00

Choose any color from the color chart, no extra charge.

Hanging Large/Regular Size Horse Hay and Grain Feeders

Dimensions: 47 lbs., 36" tall, 24" wide, 19" deep. 1 3/8" (16 gauge) tubing frame. 1" (16 gauge) hay area. 18 gauge sheet metal.

Hay Feeders that will hang on a pipe gate or board.  Sized for the Average Sized horse. Remove hanging brackets to mount feeder to the wall. These feeders are made of galvanized steel and powder coated in your color choice from our color chart.

#HHF-Hanging Horse Stall Feeder

Hay area bars are on 5″ centers. 4″ spacing between the bars.

When ordering specify if you prefer wall mount brackets, or hooks to hang on board or fence.

#HHF.L
Hanging Horse
Stall Feeder
w/hinged Lid

Item numberProductPrice
HHFHanging Horse Stall Feeder $  287.00
HHF.L Hanging Horse Stall Feeder w/hinged Lid  $  327.00



Corner Mount - Large/Regular Size Horse Hay and Grain Feeders

Item numberProductPrice
HHF.C  Hanging Corner horse stall feeder $  454.00
HHF.C.L Hanging Corner Horse Stall Feeder WITH Hinged Bar Lid added  $  519.00
Black feeder pictured with custom 'added item' horizontal rod.

Giraffe feeder -can be used for other types of livestock-

Are you looking for a feeder or hay rack that is not pictured on our site? Do you have an
animal with special needs that you just can’t find the right type of feeder for? Contact us to get a quote for Custom Built feeders or hay racks. We will build to suit your needs!

In use at a zoo - Giraffe hay rack feeder
Item numberProductPrice
GFC Corner Giraffe Hay Rack Feeder with trough and hinged lid $  263.00
Item numberProductSizeWeightPrice
GF40Giraffe Hay Rack with trough and hinged top lid40″ wide x 22″ tall x 15″ front to back. Hay area is 15″ at top and 4″ at bottom.40 lbs $  300.00
Item numberProductSizeWeightPrice
GF42Giraffe Hay Rack with trough and hinged top lid42″ wide x 24″ tall x 18″ front to back. Hay area is 18″ at top and 12″ at bottom. Double bars in middle of hay area. Top rack can be built to hinge from front or back.55 lbs $    320.00

THESE FEEDERS ARE ALSO AVAILABLE IN ‘HOT DIPPED GALVANIZED’ INSTEAD OF POWDER COATING. When a product goes through the ‘Hot dip galvanizing’ process  it is made with different materials (solid rods instead of tubing) to withstand the ‘Hot Dipping’ process. This does increase the cost and weight of the product. They have the same dimensions as our regular 42″ giraffe feeder.  The difference in this feeder, it has 1/2″ SOLID rod frame work. 5/16″ SOLID rod feeder bars and lid. Weight: 80lbs. You can contact our office for prices of other items that you would like to be built, to be “Hot Dipped Galvanized”

Item numberProductSizeWeightPrice
GF42.HD

HOT DIPPED GALVANIZED

Giraffe Hay Rack with trough and hinged top lid

42″ wide x 24″ tall x 18″ front to back. Hay area is 18″ at top and 12″ at bottom. Double bars in middle of hay area. Top rack can be built to hinge from front or back.55 lbs $    520.00
Item numberProductSizeWeightPrice
GF44Giraffe Hay Rack with trough and hinged top lid44″ wide x 33″ tall x 20″ front to back. Hay area is 20″ at top and 12″ at bottom. Double bars in hay area. Top rack can be built to hinge from front or back.70 lbs $    344.00
*Customized* Giraffe Hay Rack / Feeder (no trough) made for Masai Giraffes
Giraffe Hay Rack / Feeder At the Santa Barbara Zoo in California

SMALL HAY BASKET

Item numberProductSizePrice
HB101Small Hay Basket19.5″ wide at top 16.5″ wide at bottom 10″ front to back at top 2″ front to back at bottom 20″ tall. $       61.00

LARGE HAY BASKET

Item number   Product                         Size                                                                                                     Price

# HB201   –    Large Hay Basket –    40″ wide x 20″ tall x 10″ front to back at top –               $ 108.00

Free Standing Hay Racks - Available with wire mesh or bar hay area.

Don’t forget to Add a Rain Canopy to protect your hay (see Rain Canopies below hay racks)



Item numberProductPrice
FHR4.WWire mesh $    279.00

1 5/8 inch (18 gauge) tubing frame Wire hay area, 6 gauge welded wire with 4″x 4″ openings. *Available with vertical bar hay area 3/4″ (16 gauge) tubing on 4 inch centers

Item numberProductPrice
FHR8.W8 ft Standing Hay Rack $    385.00



Just drop a square bale in these feeders and cut the strings. Easy to disassemble and move. Breaks down into 3 pieces for easy moving. Made with galvanized metal and Powder Coated. Let us know your color preference.

Do you have really small miniature animals? Reduce leg height to make the feeder lower to the ground for your very small animals at no extra charge.

#FHR4.B Hay Rack Pictured with #CAN4 Rain Canopy Added



Item numberProductPrice
FHR4.B4ft Free Standing Hay Rack with bar hay area $    279.00
FHR8.B 8ft Free Standing hay Rack with bar hay area  $    385.00

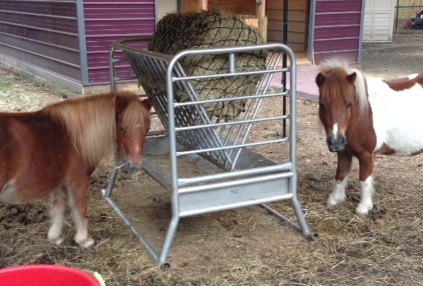

Free standing heavy duty
hay rack with trough

#GFHD8B
*Let us know if you prefer the vertical bar, or the 4×4 wire mesh in the hay holding area. Both versions pictured above.

#GFHD DIMENSIONS

34″ wide at skids
29″ wide at trough
26″ wide at top of hay rack
18″ from ground to top of trough
44″ from ground to top of hay rack
6″ deep trough
Bottom of hay rack sits at top of trough
Bars on 4″ centers (3.25″ between bars)
4′ hay rack= 48″ long feeder ; (54″ long skids)
6′ hay Rack= 72″ long feeder (78″ long skids)
8′ hay rack= 96″ long feeder ; (102″ long skids)

Skids and legs – 16 gauge, 1 5/8″ tubing
Top frame- 16 gauge, 1 3/8″ tubing
Hay area bars- 16 gauge, 3/4″ tubing

#GFHD4.W- Wire mesh hay area
Item numberWeightProductPrice
#GFHD4.W 4′ Heavy Duty Hay Rack w/ trough – mesh$453.00
#GFHD4.B96lbs4′ Heavy Duty Hay Rack w/trough – bar$453.00
#GFHD6.W 6′ Heavy Duty Hay Rack w/trough – mesh$545.00
#GFHD6.B118lbs6′ Heavy Duty Hay Rack w/trough – bar$545.00
#GFHD8.W 8′ Heavy Duty Hay Rack w/trough – mesh$629.00
#GFHD8.B152lbs8′ Heavy Duty Hay Rack w/trough – bar$629.00
#GFHD8B Pictured with ADDED Rain Canopy Frame ready to add the Rain Canopy Cover to. See below for Rain Canopies and Frames
#GFHD8
8ft Rain Canopy and frame pictured on the #GFHD8B hay rack, with special ordered red cover

Add a White Rain Canopy and Frame to any free standing Hay Rack

Add to your 4ft and 8ft Free Standing OR 4ft, 6ft, or 8ft Heavy Duty with Trough Hay Racks listed above and below. Easy access to open for filling with hay. Will open from both sides for adding flakes of hay or canopy will lift off to add entire bale. Clamp attachment with slide in holder for canopy top. Canopy can be attached to frame with rope or zip ties. The cover is waterproof, UV resistant, and will not crack or become brittle in cold weather.

Item numberWeightProductPrice
# CAN4 4′ WHITE Rain Canopy and Frame$154.00
# CAN635lbs6′ WHITE Rain Canopy and Frame$194.00
# CAN845lbs8′ WHITE Rain Canopy and Frame$235.00
White is the standard color of the canopy, other colors available for $10.00 more.

Heavy Duty 6ft tall Hay Rack with Trough for larger sized livestock Available in 4ft, 6ft, and 8ft lengths

#HF8
#HF8

#HF (4′, 6′, 8′) HAY RACK DIMENSIONS
36″ wide at skids – 29″ wide at trough
26″ wide at top of hay rack
36″ from ground to top of trough
72″ from ground to top of hay rack
6″ deep trough
Bottom of hay rack sits 6″ above trough
Bars on 5″ center (4.25″ between bars)
4′ Hay Rack= 48″ long feeder (54″ long skids)
6′ hay Rack= 72″ long feeder (78″ long skids)
8′ Hay Rack= 96″ long feeder (102″ long skids)

Skids and legs – 16 gauge, 1 5/8″ tubing – Top frame- 16 gauge, 1 3/8″ tubing – Hay area bars- 16 gauge, 3/4″ tubing

(# HF4)
ADD a WHITE Rain Canopy to protect your hay, see this in above Items # CAN4, CAN6, CAN8 )
Item numberProductPrice
# HF44′ Heavy Duty Large Livestock Hay Rack w/ trough$453.00
# HF66′ Heavy Duty Large Livestock Hay Rack w/ trough$545.00
# HF88′ Heavy Duty Large Livestock Hay Rack w/ trough$629.00
Choose any color listed on our color chart for your tote.
