goat totes and loading chutes

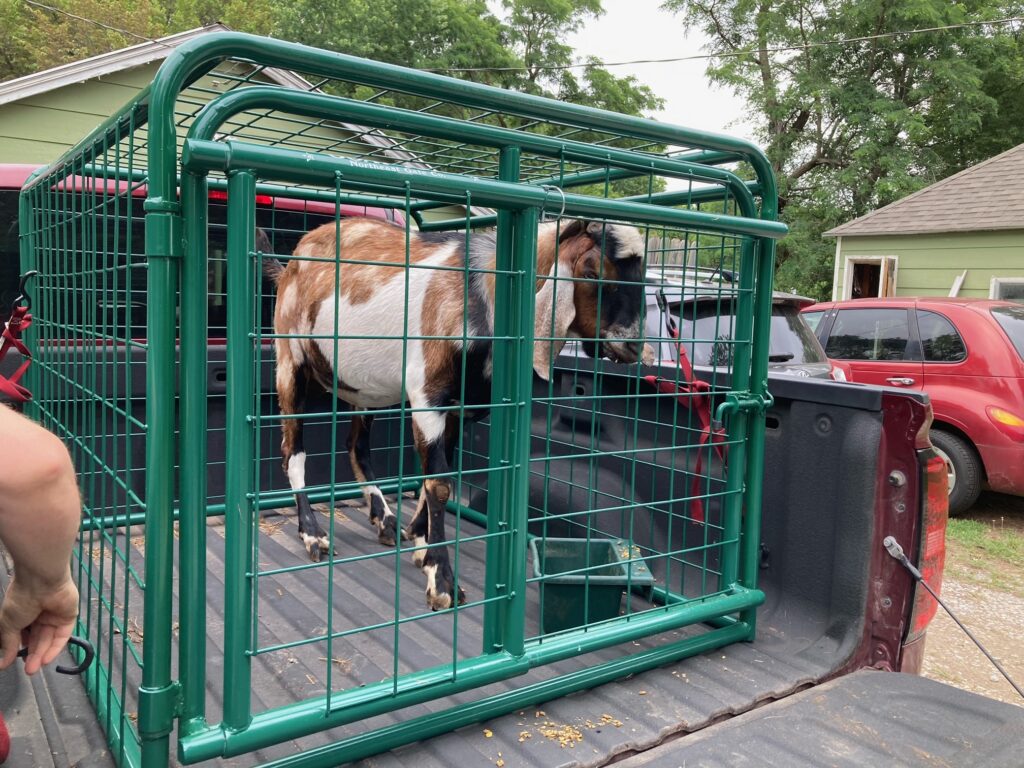

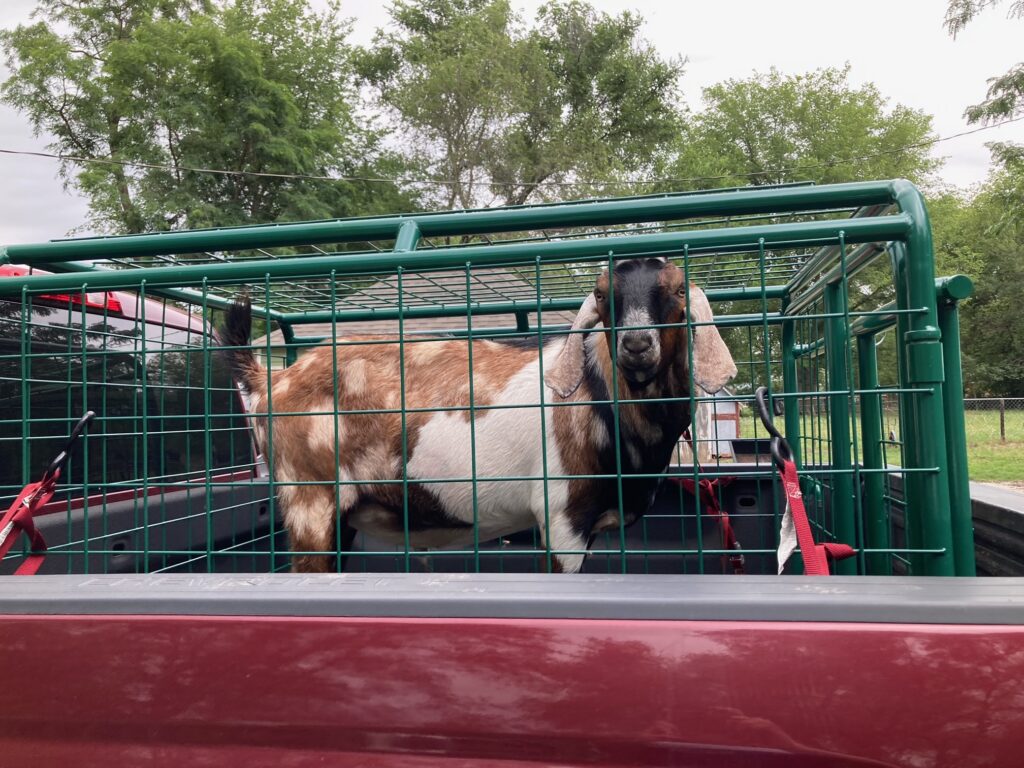

The Original "GOAT TOTE" for Full size and Compact size trucks
The white cover is made of a heavy duty vinyl/nylon. Now, ALL covers feature a clear vinyl window at the rear of your tote so your animals can be seen from your rear truck window. The sides can be rolled up or down depending on the weather. The cover can be attached to the tote using regular ‘cable ties’. To add color to the tote cover, pricing to the right. If you have any questions about the “Goat Tote” or Covers, feel free to contact us.
TOTE COVERS available in colors listed to the right at no extra charge. Extra charge for any color not listed. Let us know your preferred color and we can get you a price for that color tote cover if available.
5ft Goat Tote
5ft Compact Tote: 39 inches wide by 35 inches tall by 5 feet long
5ft Regular Tote: 47 inches wide by 40 inches tall by 5 feet long
GTS5 – Compact Goat Tote 5ft long (70lbs) = $ 457.00
GTF5 – Full Size Goat Tote 5ft long (75lbs) = $ 457.00
GTCV5 – Custom Fit white 5 ft White Cover* (12lbs) = $ 199.00
5ft Regular or Compact Goat Tote with cover = $ 656.00
6ft Goat Tote
6ft Compact Tote: 39 inches wide by 35 inches tall by 6 feet long
6ft. Regular sized tote 47 inches wide by 40 inches tall by 6 feet long
GTS6 – Compact Goat Tote 6ft long(85lbs) = $ 534.00
GTF6 – Full Size Goat Tote 6ft. long (90lbs) = $ 534.00
GTCV6 – Custom fit 6ft white cover* (14lbs) = $ 231.00
Goat Tote 6ft. long with cover = $ 765.00
8ft Goat Tote
8ft Regular sized tote: 47 inches wide by 40 inches tall by 8 feet long
GTF8 – Full Size Goat Tote 8ft. long (110lbs) = $ 699.00
GTCV8 – Custom fit 8 ft. white cover* (18lbs) = $ 263.00
Goat Tote 8ft long with cover = $ 962.00
Totes powder coated in your color choice from the chart. No Extra
charge for colors listed.
*To attach the cover to the Goat Tote Customer will need to purchase “zip ties” or
plastic cable ties, or attach the cover with a rope. Attachment hardware is not
provided with cover.
GOAT TOTE – DIVIDER OPTIONS:
Get a Divider added from Front to Back or Side to Side. Your option when ordering your customized tote….adding divider adds @ 30 lbs
6ft. tote pictured with Divider added ‘Front to Back”. Animals can be loaded in the
right side of tote, door latched, then animals loaded in the left side of tote.
8ft Regular Sized Tote pictured with added Divider ‘Side to Side‘. animals can be
loaded in back of tote, door latched then animals can be loaded in the front part of tote.
Add a removeable front to back divider in a 5′ or 6′ Tote = $ 179.00
Add a permanent side to side divider in a 8′ tote = $ 179.00
GOAT TOTE WITH SOLID METAL TOP (Available in FULL or COMPACT size)
All totes made with galvanized materials, and then powder coated (baked on paint) in your color choice from our color chart.
COMPACT and FULL SIZE Tote with solid metal top: 39 inches wide by 35 inches tall by 5', 6' or 8' long
|GTS5.MT||115lbs||Compact Size Goat Tote 5ft. long with metal top||$ 689.00|
|GTS6.MT||135lbs||Compact Size Goat Tote 6ft. long with metal top||$ 809.00|
|GTS8.MT||185lbs||Compact Size Goat Tote 8ft. long with metal top||$ 1,020.00|
|GTF5.MT||120lbs||Full Size Goat Tote 5ft. long with metal top $ 699.00|
|GTF6.MT||140lbs||Full Size Goat Tote 6ft. long with metal top $ 809.00|
|GTF8.MT||195lbs||Full Size Goat Tote 8ft. long with metal top $ 1,020.00|
ADD ON: ADD A HAY/STORAGE RACK ON TOP OF THE METAL TOP TOTE
|ADD5HR||5′ Full or Compact Size Metal Top Tote- ADD ON Hay Rack|
|ADD6HR||6′ Full or Compact Size Metal Top Tote- ADD ON Hay Rack|
|ADD8HR||5′ Full or Compact Size Metal Top Tote- ADD ON Hay Rack|
~~CUSTOM COLOR OPTION on all products~~
Custom Colors Not listed on our color chart are available for an extra charge. Please call to let us know the custom
color you are interested in, and we can let you know the extra price to order that color for your item, and powder coat your equipment in that custom color.
The "PIG TOTE" for Regular and Compact size trucks
The compartments are evenly sized in the Pig Totes, so the customer can determine what size tote they need for the size of hog they need to transport. All totes are 47″ wide. There are 4 compartments in each tote or can be 2 compartments, with middle gates left open. The tote is made with 18 gauge galvanized pipe, the galvanized wire mesh sides are 6 gauge. Totes are Powder
Coated “Wheel Grey”. Other color options listed.
5′ Pig Tote has 4 compartments with each approx. 24″x 30″ (or with middle gates open 2 compartments 24″x 60″)
6′ Pig Tote has 4 compartments with each approx. 24″x 36″ (or with middle gates open 2 compartments 24″x 72″)
8′ Pig Tote has 4 compartments with each approx. 24″x 48″ (or with middle gates open 2 compartments 24″x 94″)
5ft PIG Tote- with 4 Compartments
47 inches wide by 40 inches tall by 5 feet long
PTF5 – Regular PIG Tote 5ft long = $ 699.00
PTCV5 – Custom Fit white 5 ft Cover = $ 199.00
5ft PIG Tote w/cover
6ft PIG Tote- with 4 Compartments
47 inches wide by 40 inches tall by 6 feet long
PTF6 – Regular PIG Tote 6ft. long = $ 829.00
PTCV6 – Custom fit 6ft white cover = $ 231.00
6ft. PIG Tote with cover
8ft PIG Tote– with 4 Compartments
47 inches wide by 40 inches tall by 8 feet long
PTF8 – Regular Goat Tote 8ft. long (regular size) $ 1,036.00
PTCV8 – Custom fit 8 ft. white cover $ 263.00
8ft PIG Tote with cover
Add ‘removable’ option for inside divider gates for + $35.00. Then tote can be also used as a whole open area when dividers are removed.
Adjustable Loading Chute
his loading chute is like the chute pictured above, but is adjustable in height and unlike the loading chute above, the support bar at 30” is removable and the ramp can be dropped down to a 12″ height so ramp can also be used for loading animals into a stock trailer. This makes the Chute adjustable for a 30″ height, or a 12″ height depending on where you are loading animals. Material used to make the Loading chute: 16 gauge pipe ends and 18 gauge pipe sides. Wire mesh is 6 gauge. Galvanized Steel, and Powder Coated “Wheel Grey” unless
another color is chosen from our color chart. Measurements: Ramp is 5ft long x 17in wide (20lbs). Side panels are 5ft long x 5ft high at the tallest point (26 lbs each), 4ft at the lower point. Bows 21in. outside width, 18in. inside width. (tall bow 16lbs.- short bow 14lbs) . The front bow is 6ft 6in tall, the back bow is 5ft tall. Total weight of chute 102lbs. Maximum animal weight on ramp 350lbs.
Item# LC200 Adjustable Loading Chute = $ 518.00
See below to add wheels and hitch to the loading chute
The loading chute pictured above breaks
down into 5 pieces: 2 side panels (26
lbs. each), 1 front bow (16lbs.), 1 rear
bow (14 lbs.), and 1 ramp (20 lbs). @
102lbs total. It can quickly and easily be
disassembled for moving, hauling, or
storage. The drop pins used to assemble
your chute are permanently attached to
the chute so they can not be lost in
transit, and easily slide up and down for
LC200.WH – Loading Chute with wheels and hitch added = $ 639.00
Add Wheels and hitch to your LOADING CHUTE so you can make it quick and easy to move, and you can pull it behind your three wheeler or other small motorized vehicles. With ‘no flat’ wheels added, you will not have to break it down for moving if you are using it on several locations of your farm.
Choose any color from our color chart.
